Ace Pump Model FMC-200SS-HYD-304 - Stainless Steel Hydraulic Centrifugal Sprayer Pump

FMC200HYD304S: 2" x 1-1/2" FPT Ports with #304 Hydraulic Motor - 11GPM, 200 GPM MAX, 120 PSI @ 5100 RPM MAX. For Pressure Compensating Closed Center Systems, Load Sensing Closed Center Systems, & Open Center Systems rated at 11-20 GPM. Equipped with restrictor orifice.

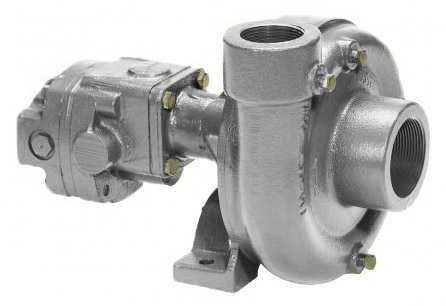

(Cast Iron Model Shown.)

These straight centrifugal frame mounted pumps are driven by a close coupled hydraulic motor. The hydraulic motors have built in reverse check valves to prevent seal damage due to impeller coasting and reverse rotation. Each motor also has an integral needle valve to by-pass excess hydraulic fluid on open center systems. Valox Impeller; Cast Iron optional. Stainless shafts and wear rings. Standard Viton® mechanical seals.
Viton® is a registered trademark of DuPont Performance Elastomers.

Manufacturer: Ace Pumps
SKU: ACFMC200HYD304S
VIEW CATALOG PAGE E0233
Trustpilot
$1,675.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Pump TypeCentrifugal
Body MaterialStainless Steel
Seal MaterialViton®
Inlet Size1-1/2"
Outlet Size1-1/4"
Inlet ConnectionFPT
Outlet ConnectionFPT
Max GPM120
Max PSI120
Motor Max RPM5100
Pump MfgAce Pumps
DriveHydraulic Motor
Drive StyleClose Coupled
Manufacturer Part NumberFMC-200SS-HYD-304
