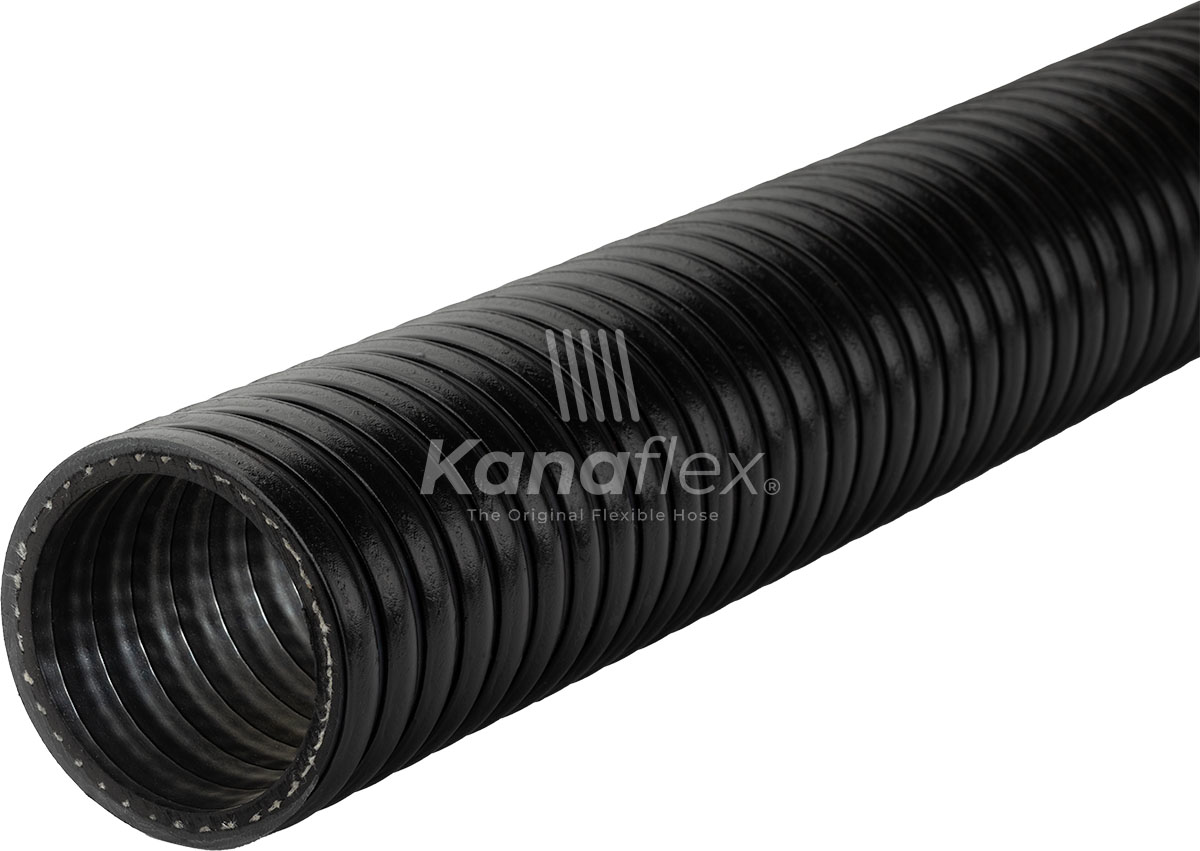

flexCHEM 390 Suction / Discharge Hose, EPDM, 1-1/4" ID, 1.80" OD, 3" Bend Radius, 100 PSI

Kanaflex EPDM suction hose is ideal for water transfer and handles fertilizers, ag chemicals, salt brine, and much more. It provides excellent flexibility for handling and using on a hose reel. One of the top choices for tankers, nurse trailers, tender trailers, and more.

  • Lightweight - Low Cost
  • 100% EPDM Tube
  • Abrasion Resistant Cover
  • Smooth I.D. for Maximum Flow Rates
  • Ideal for High Ozone Areas


flexCHEM 390 (390SD) Series EPDM Suction or Discharge Hose. 100 PSI rating at 72° F. Full vacuum rating at 72° F.. Polyethylene Helix. Corrugated OD. Smooth Bore. Internal Braiding for higher pressure. Color: Black. -40° F. to +140° F.


Note: Use of 12" of banding coil at the fitting will reduce flexing which is a common cause of hose failure at the connection.

Manufacturer: Kanaflex Hose
SKU: KA390SD-1-1/4
VIEW CATALOG PAGE E0308
Save!
  • 25% on 100 (FT)
$4.40 / FT
This quantity of this product must be a multiple of 5
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Tube Material EPDM
Hose I.D. 1.25"
Hose O.D. 1.6"
Bend Radius 9"
Hose Reel Capacity 100'
Max PSI 100
Max Temp (Deg. F) 140
Color Black
Manufacturer Part Number 390SD-1-1/4
