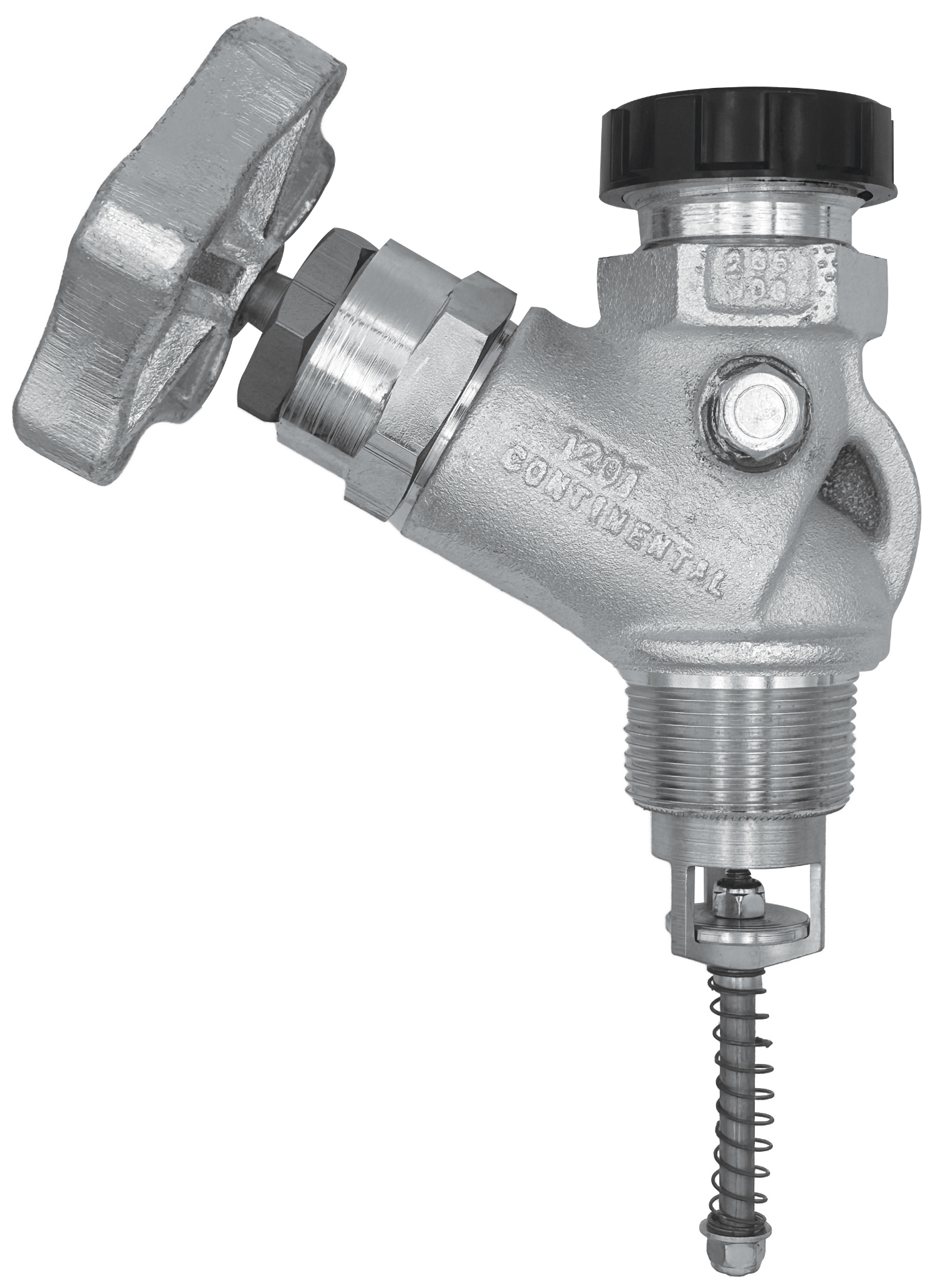

Top Connect Manual Fill, Vapor or Withdrawal Valve for NH3, 1-1/4" MPT x 1-3/4" Acme with 1/4" FPT Bleeder Port, Zinc Plated. Excess Flow Check @ 42 GPM

1/4" FPT Bleeder Port

The B1201 is a HIGH FLOW, manual shut-off valve for applicator and/or nurse tanks. It is designed for use as a filler, vapor or liquid withdrawal valve. The rugged ductile iron body is an assurance of durability and longer service life. Includes built-in excess flow check assembly (42 GPM).


  • 1-3/4" ACME THREAD
  • HEX WRENCH PADS
  • 1/4" FPT PORT
  • DUCTILE IRON BODY
  • 1-1/4" MPT (Tank Connection)



All steel excess flow check for use with NH3 and additives.
THE 1200 SERIES VALVES FEATURE:

  • Stainless steel stem - Precision ground & polished.
  • Ductile iron body - 400 PSI WOG.
  • Field proven nylon seat in swivel poppet retainer.
  • Teflon stem packing. Positive seal.
  • All steel excess flow check for use with NH3 and additives.
  • Every valve pressure tested after assembly.
  • All 1200 Series parts are interchangeable.
Manufacturer: Continental NH3 Products
SKU: CNB1201
VIEW CATALOG PAGE E0435
Save!
  • 5% on 10 (EA)
$193.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Body Material Ductile Iron
Port Size A 1-1/4"
Port Size B 1-3/4"
Bleeder Port Size 1/4" FPT
Connection Top Connect
Port Type A MPT
Port Type B ACME
Max PSI 400
Manufacturer Part Number B-1201

Additional Information

Liquid fill rates obtained with complete hose assemblies so as to duplicate actual operating conditions. The hose assembly includes: Loading riser angle valve, hose-end valve, and 12' of hose with necessary couplings.
