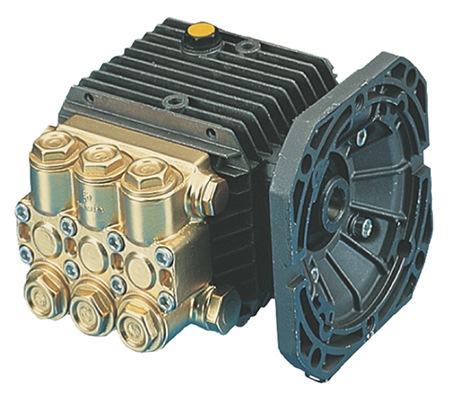

Triplex Plunger Pump, Direct Drive: MAX 2.1 GPM, 1500 PSI, 1750 RPM

TT Series 51 Triplex Plunger Pumps with Hollow Shaft (Flanged for Direct Couple to Electric Motor). NEMA-56C.

• Forged brass manifold
• Die-cast anodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet and outlet valves
• Ideal for all general cleaning, RO and misting applications
• Comes standard with NEMA 56C electric motor mounting flange
• Also available in "L" left-handed versions

Manufacturer: General Pumps
SKU: IPT9051EBF
VIEW CATALOG PAGE E0640
$375.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Pump TypePlunger
Shaft TypeHollow
Inlet Size3/8"
Outlet Size1/4"
Shaft Size5/8"
Inlet ConnectionFPT
Outlet ConnectionFPT
Max GPM2.1
Max PSI1500
Motor Max RPM1750
DriveElectric Motor
Manufacturer Part NumberT9051EBF

Additional Information

Maximum Volume: 2.11 GPM
Maximum Discharge Pressure: 1500 PSI
Maximum Pump Speed: 1750 RPM
Maximum Inlet Pressure: 125 PSI
Maximum Inlet Vacuum: 3 ft. water (2.6 Hg)
Plunger Bore: .591 in. / 15 mm
Plunger Stroke: .370 in. / 9.4 mm
Oil Capacity: 11.2 oz.
Maximum Fluid Temperature: 165 Deg. F
Inlet Port Thread: 3/8-19 BSPP-F
Discharge Port Thread: 1/4-19 BSPP-F
Shaft Diameter: 5/8 in. / 16 mm
Weight: 11.5 lbs.
Dimensions: 7.0" x 7.2" x 5.5"
