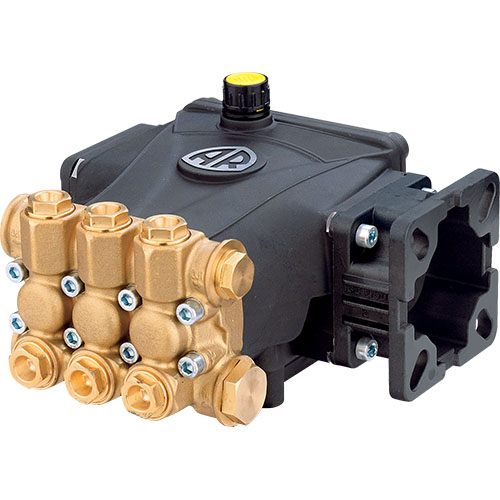

Triplex Plunger Pump with Flange: MAX 2.5 GPM, 2700 PSI, 3400 RPM (3/4" Hollow Shaft)

Industrial Triplex Plunger Pumps

Standard with GAS Mounting Flange.
Shaft: 3/4" Hollow
Max LMP: 9.5
Max Bar: 186
Power EBHP: 4.6
Max Temp: 140 Deg. F
Bore Dia.: 15 mm
Stroke: 5.6 mm
Oil Capacity: 9.81 oz.
Inlet Thread: 1/2" F
Discharge Thread: 3/8" F
AR Plunger Pumps are designed for a wide variety of industrial cleaning, car/truck wash and pressure wash applications. Available in pulley or direct drive for electric motor or gas engines.
SKU: ARRCV25G27D-F7
VIEW CATALOG PAGE E0038
$320.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Pump Type Plunger
Shaft Type Hollow
Inlet Size 1/2"
Outlet Size 3/8"
Shaft Size 3/4"
Inlet Connection FPT
Outlet Connection FPT
Max GPM 2.5
Flow Rate 2.5 GPM @ 2700 PSI
Max PSI 2700
Max Temp (Deg. F) 140
Motor Max RPM 3400
Series RCV
Manufacturer Part Number RCV25G27D-F7

Additional Information

Standard Features Include:
• High strength, forged brass manifolds
• Aluminum oxide ceramic plungers
• Stainless steel valves, seats and springs
• Continuously lubricated seals and V-packings
• Triple lip oil seals
• Extra long connecting rods made from a special alloy
• Die-cast aluminum crankcases with oversized cooling fins
• Premium bearings for exceptional load support
• Maximum 140° F.
• Ports on most pumps are 1/2" inlet by 3/8" outlet
• Large flow pumps have larger ports
• Rails are not included and must be ordered separately if needed.
