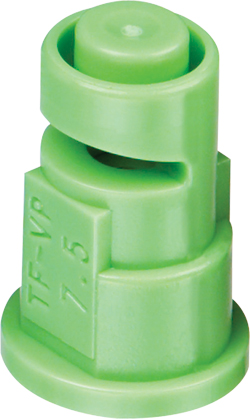

Turbo FloodJet Wide Angle Flat Spray Tip Nozzle, 7.5 Orifice, Green Polymer

With VisiFlo® Color Coding

• Excellent spray distribution for uniform coverage along the boom.
• Nozzle design incorporates a pre-orifice to produce larger droplets for less drift.
• Large, round orifice reduces clogging.
• Stainless steel with VisiFlo® color-coding band for easy size identification.
• Can be used with #CP25599 NY Quick TeeJet® cap for automatic alignment. (See link below)

Typical Applications:
Soil Incorporated Herbicides Use at lower pressures (10-25 psi) to produce larger droplets for reduced drift. Mount on 30 - 40" spacings.

Pre-Emerge Herbicides Use at 10 - 25 psi to reduce drift and provide uniform coverage. Also good for broadcast application of liquid fertilizers.

Post-Emerge Systemic Herbicides Use at 20 - 30 psi to control drift. Provides uniform coverage along spray boom. 30" spacings are suggested for post-emerge applications.

TFVP: All polymer, color coded.
*Wide angle spray nozzle height is influenced by nozzle orientation. The critical factor is to achieve a minimum 30% overlap.
