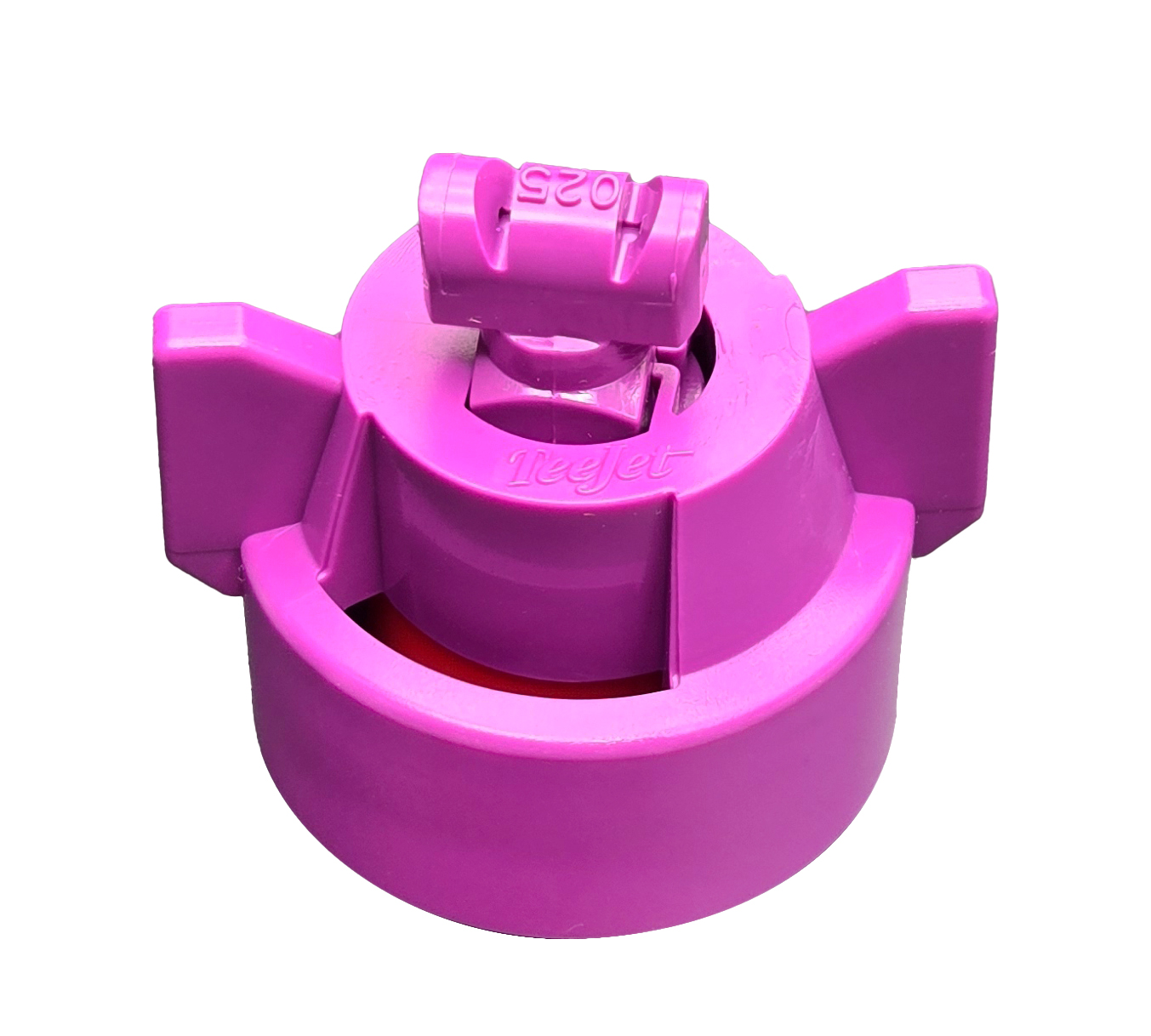

Turbo TwinJet Nozzle Assembly with Cap, Tip and EPDM Gasket, Twin Flat Spray Tip, Polymer, 110°, .025 Orifice, Violet

100 Mesh Strainer Recommended (Not Included) • VisiFlo® Color Coding

Typical Applications:

• Best for pre-emerge surface applied herbicides - minimum spray pressure of 15 PSI.
• Best for post-emerge contact herbicides - typical pressures of 40 PSI and higher.
• Excellent for fungicide application.

Features:

• Tip produces dual, tapered edge, wide angle, flat spray pattern for uniform coverage in broadcast spraying.
• Dual angled spray patterns help to penetrate the crop canopy and provide thorough leaf coverage.
• Large, round free passages to minimize clogging.
• All acetal construction for excellent chemical and wear resistance.
• Larger droplet size than TT Nozzles for improved drift control.
• Automatic spray alignment with CP25611 Quick TeeJet cap. *(See related items)
• To install: Align tip barrel with cap flats and press in until tip bottoms out. Rotate tip 90 Deg. until tip flats are parallel with cap flats. Press tip until it bottoms out again.
• Suggested spray pressure range: 20-90 PSI.
• All Sizes Suitable with PWM Spray Systems.
