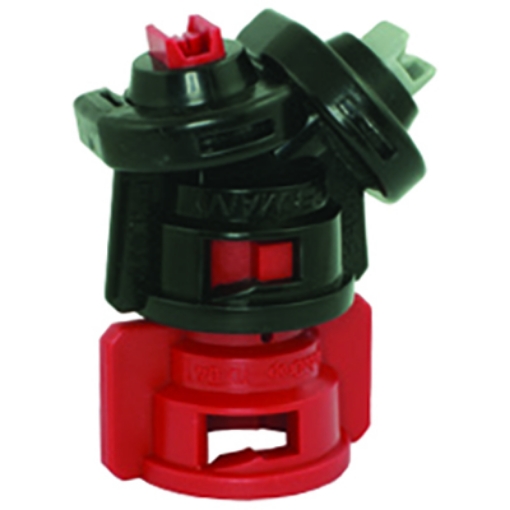

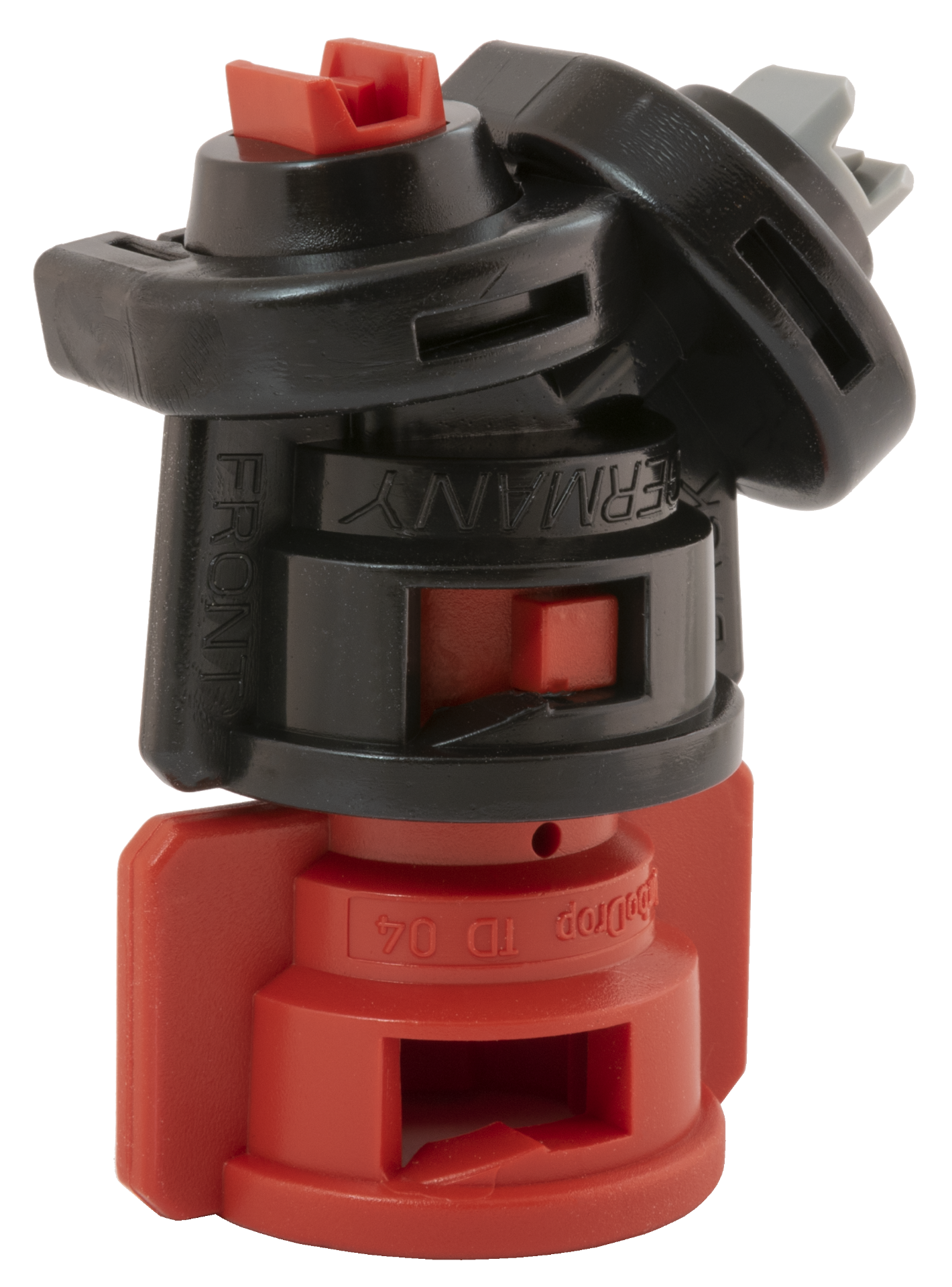

TurboDrop® Asymmetric Dual Fan "D" Spray Tip Nozzle, 04 Orifice, Dicamba Approved

Air Injection to Minimize Drift, TurboDrop® Dual Fan-D, Coarser Droplets for Chemicals Requiring Maximum Drift Control

MAKE SURE YOU CHECK YOUR PRODUCT LABEL TO MAKE SURE YOU ARE SPRAYING ON LABEL

GTTADF04-D is a Dicamba Approved Nozzle for Enlist One Max 90 PSI (pressure at tip).

The D Version of the TurboDrop® Dual Fan Nozzles (TADF-D) were designed with dicamba, 2, 4-D and glyphosate in mind, where a coarser spray droplet is desirable.

The D Nozzles employ proven Turbo-Drop® Venturi Technology to inject air and create a larger, more uniform droplet spectrum. The pattern tips are larger in comparison to those of the standard Dual Fan nozzles, which results in a greater pressure drop and a larger overall droplet size. D Series Nozzles can be converted to standard Dual Fan Nozzles by switching out the pattern tip(s) for smaller ones in order to make the spray less coarse for contact pesticides. Alternating the TADF-D nozzles with the 10° fan forward and then the 10° fan backward on the boom will help counter potential loss of coverage by effectively spraying the target four times.

The Ceramic Wear Insert Versions (TADF-D & TDCTF-D) are generally good for 50,000 to 80,000 acres vs. 20,000 to 30,000 acres for the standard polyacetal versions (TDXL & TDTF).

Pressure Range: 30 to 120 PSI (30 to 150, Ceramic)
Suggested Spray Height: 18" to 36" (on 20" centers)
Material of Construction:
TADF-D : Polyacetal & EPDM Gasket
TACDF-D: Polyacetal, Ceramic Wear Insert, EPDM Gasket

Note: Rotate every other nozzle (10° forward) then 10° back). Use a long boom for best coverage.
