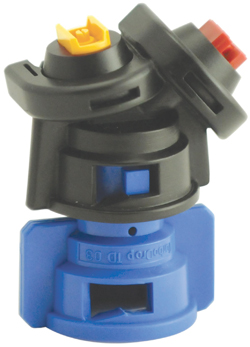

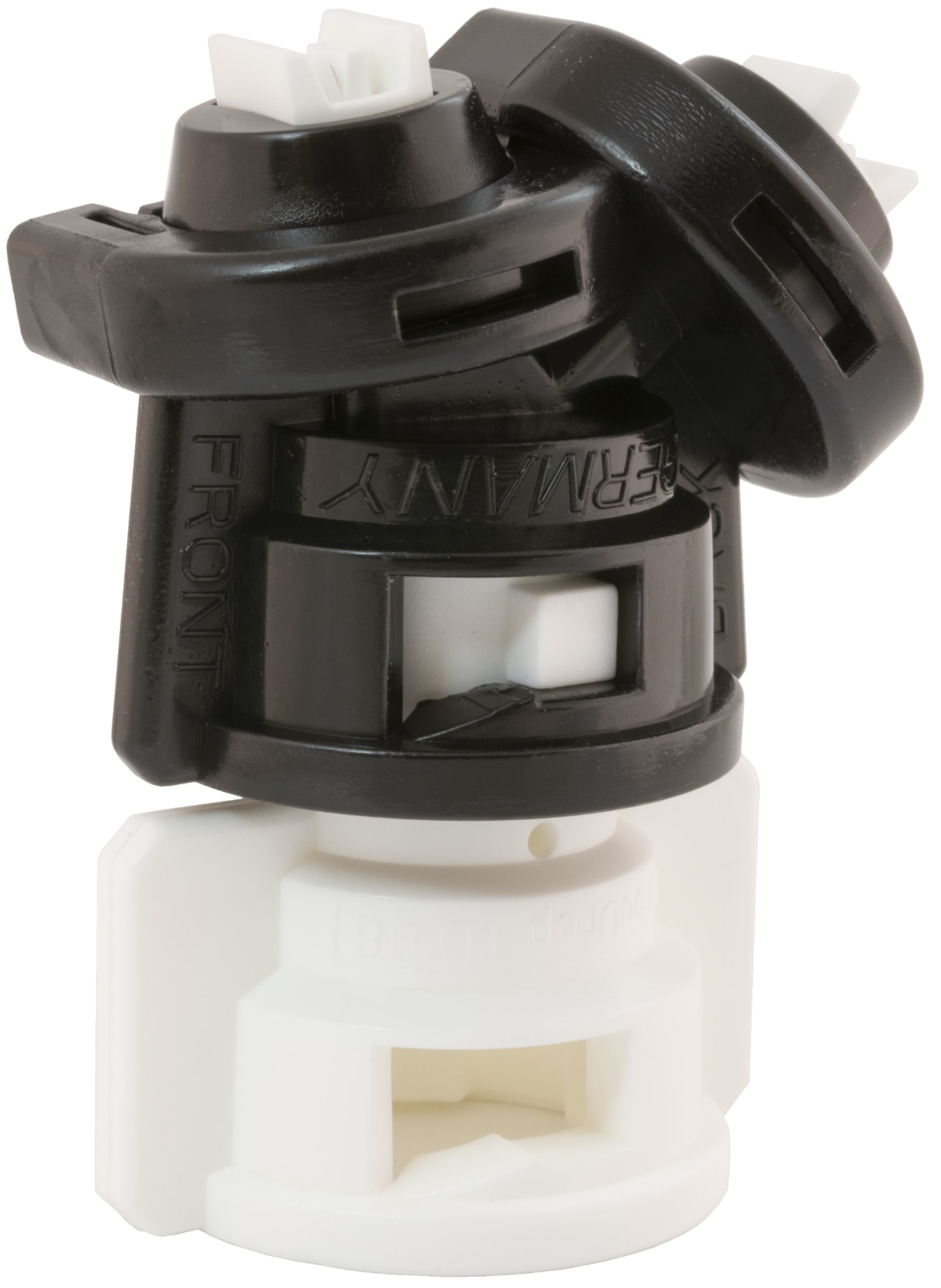

TurboDrop® Asymmetric Dual Fan Spray Tip Nozzle, 08 Orifice

The new TurboDrop® Asymmetric Dual Fan Nozzle (TADF) is designed to improve coverage on vertical and angular targets with contact chemicals.

With single flat fan nozzles, the force from the travel speed of the sprayer deflects the downward oriented droplets forward in the driving direction. Coverage on the backside of the plant is minimized. The 50° rearward spray of the TADF is designed to overcome this effect and improve backside coverage. The 10° forward spray will provide a combination of penetration and frontside coverage.

Additionally, the rearward spray has a higher flow rate to further assist backside coverage. Smaller drops are produced by the forward spray to provide a wider droplet size range overall.

In most sizes, the droplet spectrum is Medium-Course below 80 psi and Medium-Fine above 80 psi.

The TADF nozzle should be ideal for fungicide spraying in wheat and other crops, and can also be used for general herbicide applications. Higher pressures are recommended for contact chemicals.



Click here to see Multi-Nozzles Tabulation Chart.

Manufacturer: Greenleaf Nozzles
SKU: GTTADF08
Add to cart to see price
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
SeriesTurboDrop Dual Fan - TADF
Spray Angle10 / 50
Spray PatternAsymmetric Dual Flat
Manufacturer Part NumberTADF08

Additional Information

Clickhere to see Multi-Nozzles Tabulation Chart.
