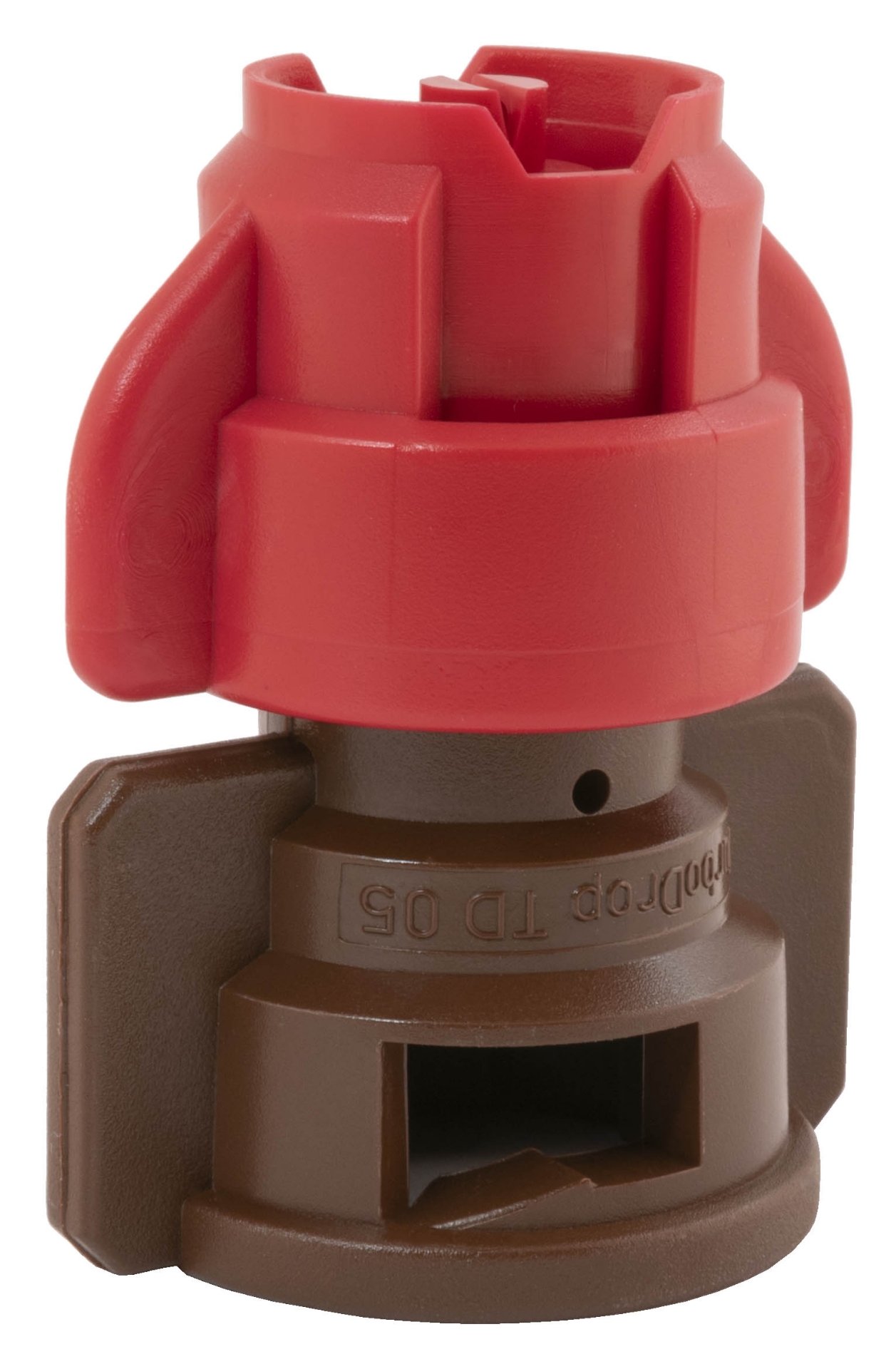

TurboDrop® XL Medium Pressure Spray Tip "D" Nozzle, 110°, 05 Orifice, Dicamba Approved

Air Injection to Minimize Drift: TurboDrop® XL-D Nozzle, Coarser Droplets for Chemicals Requiring Maximum Drift Control

MAKE SURE YOU CHECK YOUR PRODUCT LABEL TO MAKE SURE YOU ARE SPRAYING ON LABEL

GTTDXL11005-D is a Dicamba Approved Nozzle for XtendiMax 20-60 PSI (Pressure at Tip), BASF Engenia 20-60 PSI (pressure at tip), DuPont FeXapan 20-60 PSI (pressure at tip).

The D Version of the TurboDrop® XL Nozzles (TDXL-D) were designed with dicamba, 2, 4-D and glyphosate in mind, where a coarser spray droplet is desirable. It is important to remember that as sprays become coarser, coverage may be compromised. Alternating TDXL-D with Dual Fan (TADFD) Nozzles on the boom will help counter the potential loss of coverage by effectively spraying the target four times in one pass.

The D Nozzles employ proven Turbo-Drop® Venturi Technology to inject air and create a larger, more uniform droplet spectrum. The pattern tips are larger in comparison to those of the standard XL nozzles, which results in a greater pressure drop and a larger overall droplet size. D Series Nozzles can be converted to standard TurboDrop® Nozzles by switching out the pattern tip(s) for smaller ones in order to make the spray less coarse for contact pesticides.

The Ceramic Wear Insert Versions (TDCXL-D) are generally good for 50,000 to 80,000 acres vs. 20,000 to 30,000 acres for the standard polyacetal versions.

Pressure Range: 30 to 120 PSI (30 to 150 PSI Ceramic)
Suggested Spray Height: 18" to 36" (on 20" centers)
Material of Construction:
TDXL-D: Polyacetal & EPDM Gasket
TDCXL-D: Polyacetal, Ceramic Wear Insert, EPDM Gasket

Manufacturer: Greenleaf Nozzles
SKU: GTTDXL11005-D
Add to cart to see price
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Body MaterialPolyacetal
Orifice Size.05
Max PSI120
Spray Angle110 Deg
SeriesTurboDrop XL D Version - TDXL-D
Spray PatternFlat
Manufacturer Part NumberTDXL11005-D
