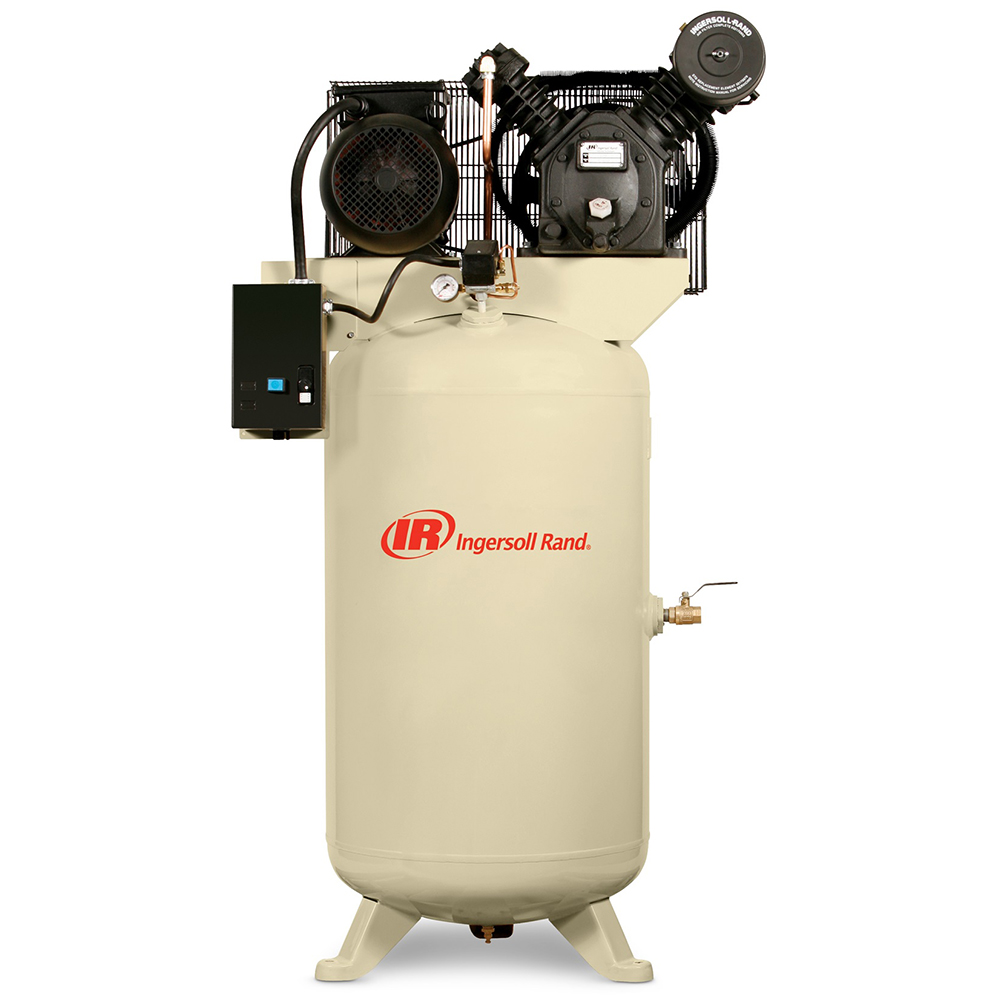

Two-Stage Electric Air Compressors, 5 - 30 HP

Type 30, two-stage Ingersoll Rand air compressors are the world's number one selling compressors in the 5 to 30 HP range. These reciprocating two-stage air compressors feature a 100% cast iron construction that's built for long-lasting performance. Powerful electric motor starters are wired and mounted right on the unit—increasing air compressor efficiency and reducing unit footprint. Air compressors include 2-stage continuous duty operation with automatic stop/start control, relief and manual drain valves, splash lubrication, and low-maintenance components. Units are available in vertical air compressor or horizontal air compressor ASME tank styles as noted.

Ingersoll Rand two-stage reciprocating air compressors are great options for farm and auto body shops, commercial garages, washdown facilities, and many other industrial applications.

Standard Features:

  • 100% Cast Iron Construction
  • Provides up to 175 PSI output
  • Wired and mounted motor starters (except 2340L5 which is not required)
  • Automatic stop/start control with Nema 1 pressure switch
  • Relief and manual drain valves
  • Splash lubrication
  • Vertical or Horizontal ASME tanks
  • Continuous duty operation
  • After coolers and electric drain valve options available
  • Easy, low maintenance


† Note: Start Up Kits (see related items) are recommended and will extend warranty but are not included.
208 & 460 Volt is Available for Most Models.

† Not Included But Extends Warranty

Part No.CatalogDescriptionPrice
SKU: IR2475N7.53/208Catalog: Description: Air Compressor, Two-Stage Electric, 80 Gallon Vertical, 7.5 Hp, 3 Phase, 208 Volt, Mag Starter, Manual Drain, No Startup Kit Price: CALL FOR PRICE
Picture of Two Stage Air Compressor, 60 Gallon, Vertical, 5 HP, 1 PH, 230V Motor, 14.3 @ 90 PSI CFM Rating, †32305880 Startup Kit No.
SKU: IR2340L5Catalog: E0514 Description: Two Stage Air Compressor, 60 Gallon, Vertical, 5 HP, 1 PH, 230V Motor, 14.3 @ 90 PSI CFM Rating, †32305880 Startup Kit No. Price: $2,293.00 / EA
i h
Picture of Two Stage Air Compressor, 60 Gallon, Vertical, 5 HP, 3 PH, 230V Motor, 14.3 @ 90 PSI CFM Rating, †32305880 Startup Kit No.
SKU: IR2340L5-3Catalog: E0514 Description: Two Stage Air Compressor, 60 Gallon, Vertical, 5 HP, 3 PH, 230V Motor, 14.3 @ 90 PSI CFM Rating, †32305880 Startup Kit No. Price: $2,316.00 / EA
i h
Picture of Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 1 PH, 230V Motor, 14.3 @ 90 PSI CFM Rating, †32305880 Startup Kit No.
SKU: IR2340N5Catalog: E0514 Description: Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 1 PH, 230V Motor, 14.3 @ 90 PSI CFM Rating, †32305880 Startup Kit No. Price: $2,710.00 / EA
i h
Picture of Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 3 PH, 230V Motor, 14.3 @ 90 PSI CFM Rating, †32305880 Startup Kit No.
SKU: IR2340N5-3Catalog: E0514 Description: Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 3 PH, 230V Motor, 14.3 @ 90 PSI CFM Rating, †32305880 Startup Kit No. Price: $2,710.00 / EA
i h
Picture of Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 1 PH, 230V Motor, 16.8 @ 90 PSI CFM Rating, †32305880 Startup Kit No.
SKU: IR5N1Catalog: E0514 Description: Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 1 PH, 230V Motor, 16.8 @ 90 PSI CFM Rating, †32305880 Startup Kit No. Price: $3,656.00 / EA
i h
Picture of Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 3 PH, 230V Motor, 16.8 @ 90 PSI CFM Rating, †32305880 Startup Kit No.
SKU: IR5N3Catalog: E0514 Description: Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 3 PH, 230V Motor, 16.8 @ 90 PSI CFM Rating, †32305880 Startup Kit No. Price: $3,656.00 / EA
i h
Picture of Two Stage Air Compressor, 80 Gallon, Vertical, 7.5 HP, 1 PH, 230V Motor, 24.0 @ 90 PSI CFM Rating, †32305880 Startup Kit No.
SKU: IR2475N7.51Catalog: E0514 Description: Two Stage Air Compressor, 80 Gallon, Vertical, 7.5 HP, 1 PH, 230V Motor, 24.0 @ 90 PSI CFM Rating, †32305880 Startup Kit No. Price: $3,708.00 / EA
i h
Picture of Two Stage Air Compressor, 80 Gallon, Vertical, 7.5 HP, 3 PH, 230V Motor, 24.0 @ 90 PSI CFM Rating, †32305880 Startup Kit No.
SKU: IR2475N7.53Catalog: E0514 Description: Two Stage Air Compressor, 80 Gallon, Vertical, 7.5 HP, 3 PH, 230V Motor, 24.0 @ 90 PSI CFM Rating, †32305880 Startup Kit No. Price: $3,708.00 / EA
i h
Picture of Two Stage Air Compressor, 120 Gallon, Horizontal, 10 HP, 3 PH, 230V Motor, 35.0 @ 90 PSI CFM Rating, †32305898 Startup Kit No.
SKU: IR2545E10VCatalog: E0514 Description: Two Stage Air Compressor, 120 Gallon, Horizontal, 10 HP, 3 PH, 230V Motor, 35.0 @ 90 PSI CFM Rating, †32305898 Startup Kit No. Price: $5,164.00 / EA
i h
Picture of Two Stage Air Compressor, 120 Gallon, Horizontal, 15 HP, 3 PH, 230V Motor, 51.0 @ 90 PSI CFM Rating, †32305898 Startup Kit No.
SKU: IR7100E15VCatalog: E0514 Description: Two Stage Air Compressor, 120 Gallon, Horizontal, 15 HP, 3 PH, 230V Motor, 51.0 @ 90 PSI CFM Rating, †32305898 Startup Kit No. Price: $7,001.00 / EA
i h
Picture of Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 3 PH, 460V Motor, 16.8 @ 90 PSI CFM Rating †32305880 Startup Kit No.
SKU: IR5N3-460Catalog: Description: Two Stage Air Compressor, 80 Gallon, Vertical, 5 HP, 3 PH, 460V Motor, 16.8 @ 90 PSI CFM Rating †32305880 Startup Kit No. Price: CALL FOR PRICE
