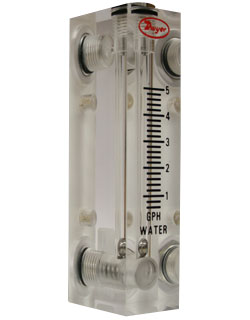

Visi-Flo Flow Meter, No Metering Valve, Brass, 2 to 10 GPH Calibration

Dwyer Flow Meters are designed to register or regulate flow rates of liquid products. All models feature Acrylic plastic bodies. Maximum pressure rating is 100 PSI. All models feature metal mounting inserts tapped with 10/32" thread.

VFA Models: Available with either Brass or Stainless steel metering valves. Scale is 2" and overall height is 4". Width is 1". Flow ranges are (.6 to 5.0) or (2.0 to 10) gallons per hour. Standard with 1/8" FPT ports and Buna-N "O" rings. Accuracy to (+ or -) 5%. Maximum Temperature is 150 Deg. F.

Meters register in Gallons per Hour.
SKU: DRVFA-42
VIEW CATALOG PAGE E0065
$90.50 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
MaterialBrass
Inlet Size1/8"
Outlet Size1/8"
Inlet ConnectionFPT
Outlet ConnectionFPT
Min GPM2
Max GPM10
Max Temp (Deg. F)150
DisplayDirect Reading Permanent Scale
Accuracy0.03
Manufacturer Part NumberVFA-42
