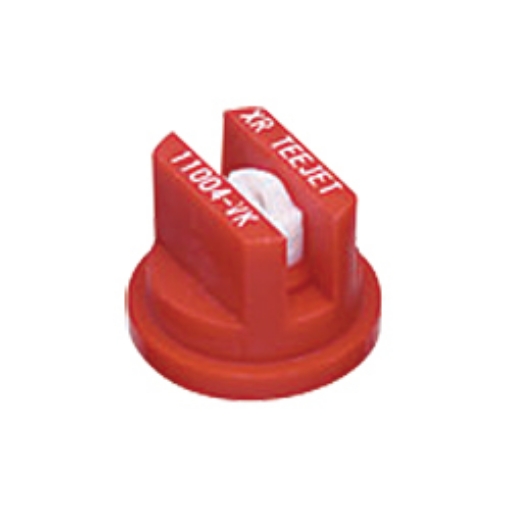

XR Extended Range Flat Spray Tip Nozzle, 110°, .04 Orifice, Red Ceramic Insert

With VisiFlo® Color Coding

Best selection for Pre-Emergence Surface Applied Herbicides at 20-30 psi or Post-Emergence Systemic Herbicides at 15-20 psi. Can also be used for Post Emergence Contact Herbicides at 30-60 psi or Pre-Plant incorporated products at 15-20 psi. Maximum temperature is 125 Deg. F.

XR Flat Spray Tips have excellent pattern distribution at 15-60 psi. Drift is minimized at lower pressures and coverage is good at high pressure.

VK Tips: Sizes 2 through 8 are color-coded with a ceramic insert. Larger sizes are all stainless.

*Available in 80 or 110 degree patterns. All Sizes Suitable with PWM Spray Systems.

Manufacturer: TeeJet / Spraying Systems
SKU: SSXR11004VK
$5.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Cover Material Polymer
Body Material Ceramic
Orifice Size 04
Max PSI 60
Max Temp (Deg. F) 125
Color Red
Spray Pattern Flat Spray
Spray Angle 110 Deg
Manufacturer Part Number XR11004-VK
