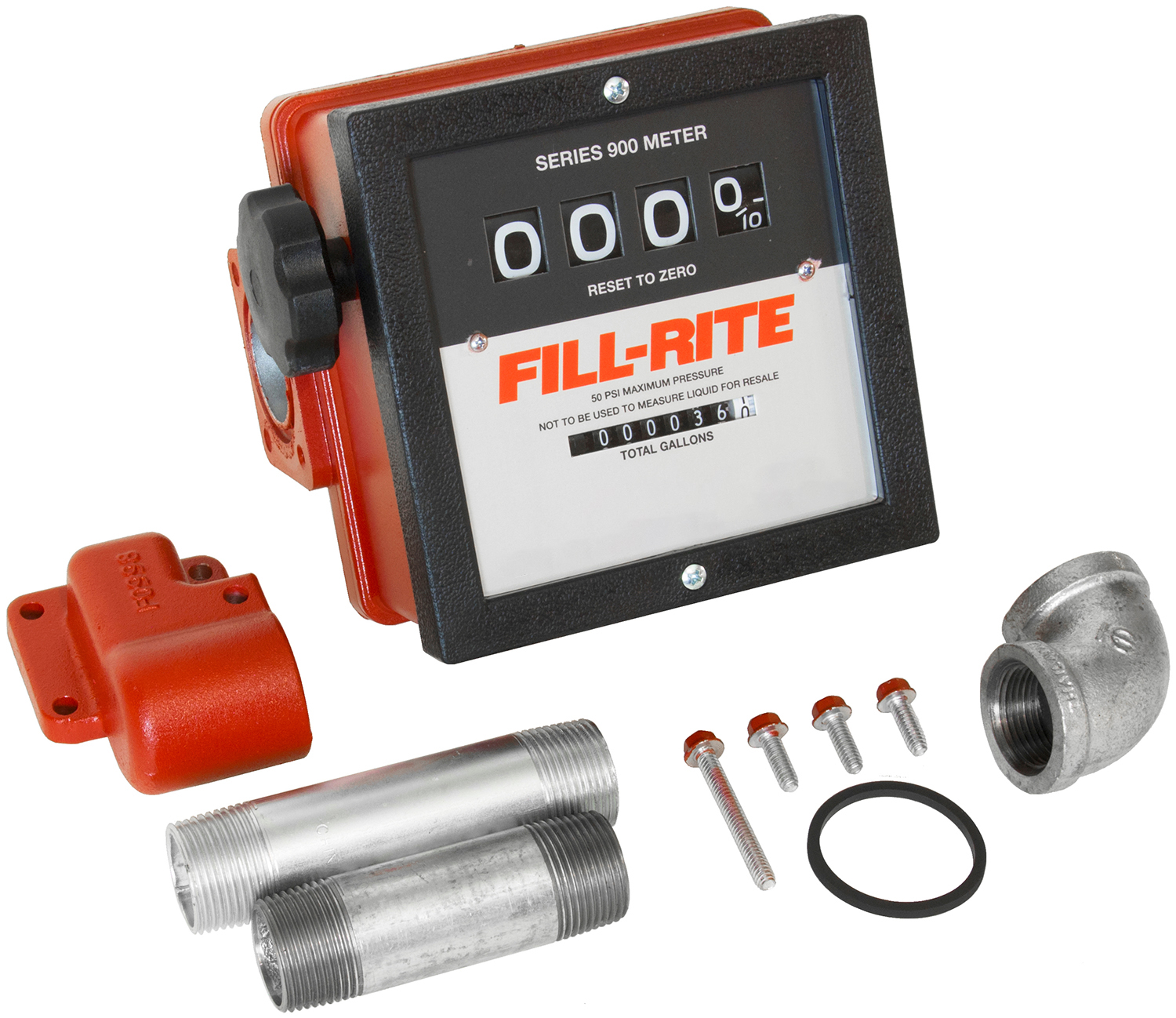

Mechanical Fuel Flow Meter Kit for FR4200/4400 Series Pumps, 1", 6-40 GPM

For 4200/4400 Fuel Pumps · Includes FR4200 Series Flange, Fittings & Hardware

Fill-rite's 900 Series Mechanical Fuel Transfer Meters provide reliable measurement and accuracy for a wide array of high-volume fuel transfer applications. Flow meters are constructed of cast-aluminum for maximum durability and added corrosion-resistance across the lifetime of the meter. The FR901MK4200 flow meter measures fuels in 1/10 gallon increments up to 1,000 gallons per batch with +/- 2% accuracy. An oversized, easy-to-read 4-digit counter registers flowrates between 6 – 40 GPM, while a 7-digit lifetime totalizer keeps track of total gallons measured. For use with Fill-rite 4200 Series fuel pumps and compatible with diesel fuels, kerosene, mineral spirits, and more.

Features:

• Pump Body Material: Aluminum

• Display Type: 4-Digit Mechanical

• Inlet/Outlet Size: 1" FPT

• Unit of Measure: 1/10th Gallons

• Max Flowrate: 6 - 40 GPM Accuracy (+/- %): 2

• Repeatability (+/- %): 0.38

• Max Operating/Discharge Pressure: 50 PSI @ 70° F

• Operating Temperature Range: -15° to 150° F

• Warranty: 1 Year


NOT for resale use. Made in the USA.
All meters register in Gallons per Minute unless otherwise noted.
