Undercarriage Car Wash Systems - Above Ground

Drive Over Undercarriage Wash System for Cars & Trucks

Keep your fleet clean and protected with this commercial undercarriage washer, designed for above-ground, drive-over installation. Ideal for trucks, heavy equipment, and commercial vehicles, this powerful system delivers high-pressure water to remove mud, salt, and debris from the vehicle underbody — helping to prevent corrosion and extend vehicle life.



This undercarriage wash system is built for demanding environments like waste management, construction, agriculture, and delivery fleets. With a drive-over undercarriage washer design, it requires no ramps or lifting, making it fast and easy to use in high-traffic maintenance bays.



Engineered for durability and low maintenance, this underbody washer includes corrosion-resistant components and the ability to suit various vehicle sizes. Whether you’re operating a single truck or a full fleet, this undercarriage washer offers a reliable solution for consistent, professional-grade cleaning.

Various Undercarriage Wash System Options Available

Four Different Flow Ranges are available:
10 GPM, 1000 PSI, 7-1/2 HP / 3 Phase Models are ideal for Pickups, Vans and Cars.
20 GPM, 1000 PSI, 15 HP / 3 Phase Models are ideal for Large Fleet Vehicles and over-the-road trucks.
27 GPM, 1000 PSI, 20 HP / 3 Phase Model is designed for Large Fleet Vehicles Undercarriage cleaning, but also includes Side Wheel Well Blasters.
47 GPM, 1000 PSI, 15 HP & 20 HP / 3 Phase Model is designed for Large Fleet Vehicles Undercarriage cleaning, but also includes Side Wheel Well Blaster



For added cleaning, see the models with the "side blast" feature. These units have wash pans on upright stands to clean rocker panels/side panels on vehicles.



Select from the different models below to view the specifications of each unit:

Be the first to review this product
Part No.CatalogDescriptionPrice
Picture of High-Volume Undercarriage Wash System with Side Blast
SKU: DUSBU491000-OTC480Catalog: E1368 Description: High-Volume Undercarriage Wash System with Side Blast Price: $49,062.00 / EA
i h
Picture of Vehicle Undercarriage Wash System, with Side Blast, 49 GPM @ 1000 PSI, 20 HP & 15 HP, 3 Phase, 480V
SKU: DUSBU491000Catalog: E3548 Description: Vehicle Undercarriage Wash System, with Side Blast, 49 GPM @ 1000 PSI, 20 HP & 15 HP, 3 Phase, 480V Price: $40,179.00 / EA
i h
Picture of Vehicle Undercarriage Wash System, 10 GPM @ 1000 PSI, 7.5 HP, 3 Phase, 208-230V
SKU: DUUC101000-OTCCatalog: E1368 Description: Vehicle Undercarriage Wash System, 10 GPM @ 1000 PSI, 7.5 HP, 3 Phase, 208-230V Price: $21,098.00 / EA
i h
Picture of Vehicle Undercarriage Rinse System, 10 GPM @ 1000 PSI, 7.5 HP, 3 Phase, 480V
SKU: DUUC101000-OTC480Catalog: E1368 Description: Vehicle Undercarriage Rinse System, 10 GPM @ 1000 PSI, 7.5 HP, 3 Phase, 480V Price: $21,118.00 / EA
i h
Picture of Vehicle Undercarriage Rinse System, 20 GPM @ 1000 PSI, 15 HP, 3 Phase, 208-230V
SKU: DUUC221000-OTCCatalog: E1368 Description: Vehicle Undercarriage Rinse System, 20 GPM @ 1000 PSI, 15 HP, 3 Phase, 208-230V Price: $24,378.00 / EA
i h
Picture of Vehicle Undercarriage Rinse System, 20 GPM @ 1000 PSI, 15 HP, 3 Phase, 480V
SKU: DUUC221000-OTC480Catalog: E1368 Description: Vehicle Undercarriage Rinse System, 20 GPM @ 1000 PSI, 15 HP, 3 Phase, 480V Price: $24,262.00 / EA
i h
Picture of Vehicle Undercarriage Rinse System, 27 GPM @ 1000 PSI, 20 HP, 3 Phase, 480V
SKU: DUUC271000-OTC480Catalog: Description: Vehicle Undercarriage Rinse System, 27 GPM @ 1000 PSI, 20 HP, 3 Phase, 480V Price: $33,434.00 / EA
i h
Picture of Vehicle Undercarriage Rinse System, with Side Blast, 27 GPM @ 1000 PSI, 20 HP, 3 Phase, 480V
SKU: DUUCWB271000-OTC480Catalog: E1368 Description: Vehicle Undercarriage Rinse System, with Side Blast, 27 GPM @ 1000 PSI, 20 HP, 3 Phase, 480V Price: $31,108.00 / EA
i h

Additional Information

How it Works: Undercarriage System Operation

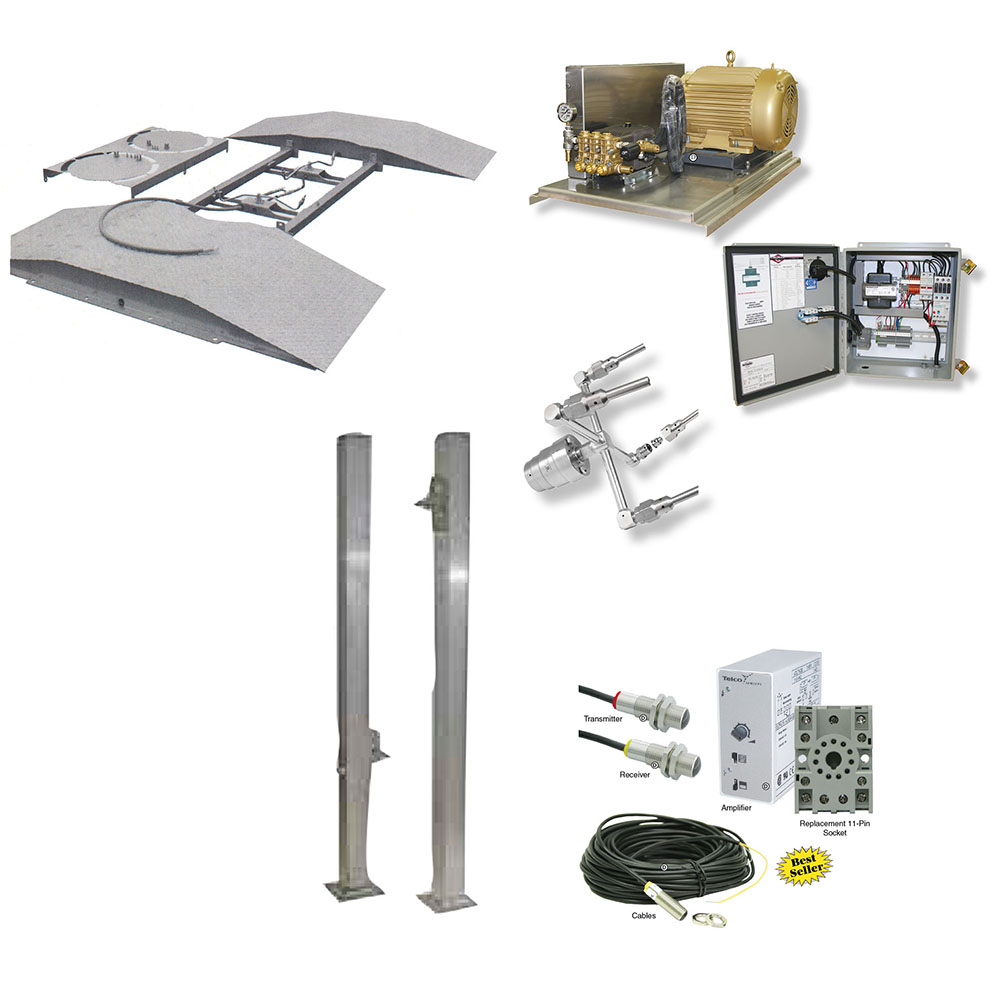

All Units are photo-eye activated and are designed for permanent locations where vehicles will drive through the cleaning process. Pumps are automatically activated when vehicles "break" the photo eye beam and then shut down when the vehicle has left the cleaning ramp. The System's electrical panels are designed to be manually activated if photo eyes are not needed or required. All systems include belt drive pump/motor unit, NEMA 4X electrical panel, stainless steel spray ramp, stabilizer nozzles, rotating swivel arms, photo eyes, stands, and connector fittings. Electrical panels are available in either 230-volt or 480-volt 3-phase primary voltage with 24-volt secondary voltage.

Note: High-pressure supply lines from the pump station to the rinse ramp and/or wheel blasters are not included, as these will vary with each location. 1/2" or 3/4" high-pressure feed lines can be supplied if needed

Key Benefits

✔️ Deep Cleans Caked-On Mud, Grime & Salt
Effectively removes thick buildup from trucks and heavy equipment undercarriages.

✔️ Prevents Rust & Corrosion
Helps protect vehicle frames and components from long-term damage caused by salt and road debris.

✔️ Drive-Over Convenience
Fast and easy — no need for ramps, jacks, or lifting equipment.

✔️ Fleet-Ready Design
Built for high-volume use in commercial wash bays, maintenance facilities, and industrial sites.

✔️ Saves Time & Labor
Eliminates manual scrubbing and reduces vehicle downtime.

✔️ Universal Compatibility
Works with a wide range of trucks, trailers, buses, and heavy equipment.

✔️ Built to Last
Industrial-grade construction designed for rugged environments and frequent use.

✔️ Simple Setup & Low Maintenance
Quick installation and easy cleaning keep your operation running smoothly.



For more information on these systems or to request a quote, contact our high-pressure cleaning department.
