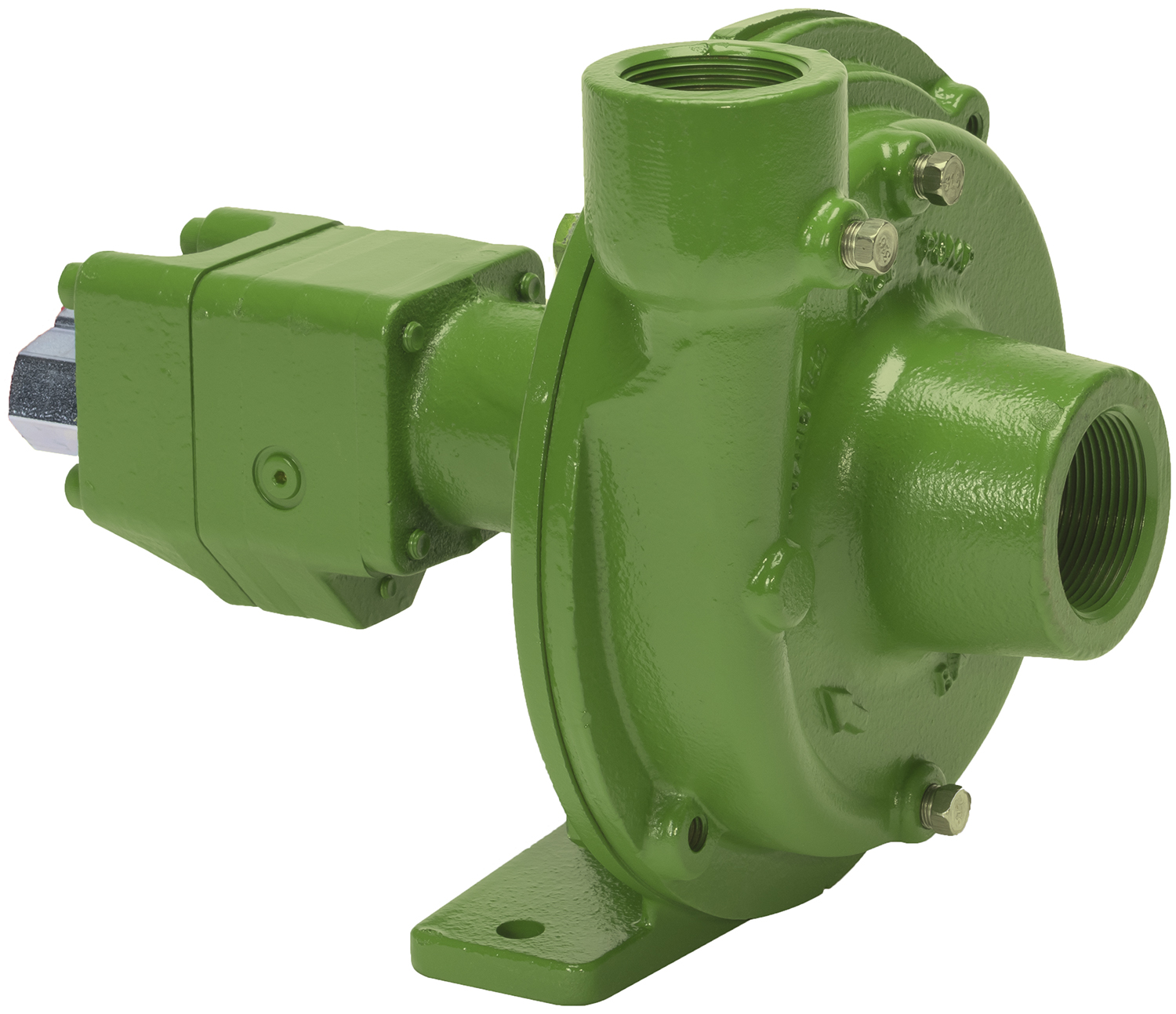

ACE Hydraulic Sprayer Pumps: Cast Iron and Stainless Steel Centrifugal Pumps

Ace hydraulic motor-driven centrifugal pumps are among the most widely used and innovative sprayer pumps in agriculture. Their efficient, reliable design makes them the go-to choice for farmers, commercial sprayers, and industrial fluid transfer applications.

Available in cast iron or stainless steel, these pumps are directly coupled to a high-performance hydraulic motor, ensuring long-lasting performance and minimal maintenance. Their versatile frame mount allows installation in virtually any position on sprayers, planters, or fertilizer bars.

Key Benefits of Ace Hydraulic Sprayer Pumps

  • Versatile Installation: Can be mounted in nearly any position, unlike PTO or belt-driven pumps.
  • Constant Pressure Control: Delivers steady pressure at varying engine speeds, ideal for closed-center hydraulic systems.
  • High Resistance to Corrosion & Wear: Stainless steel shafts & wear rings for extended service life.
  • Low Maintenance & Easy Repair: No belts to align or replace, and separate pump/motor shafts simplify servicing.
  • Superior Hydraulic Motor Performance: More efficient than gerotor-type motors, with better contamination resistance.
  • Built-in Safety Features:
    • Reverse check valve prevents seal damage from impeller coasting or reverse rotation.
    • Needle valve bypasses excess hydraulic fluid on open-center systems.
Manufacturer: Ace Pumps
Trustpilot
Part No.CatalogPump TypeBody MaterialSeal MaterialInlet SizeOutlet SizeInlet ConnectionOutlet ConnectionMax GPMMax PSIMotor Max RPMPump MfgDriveDrive StylePrice
Picture of Ace FMC-HYD-204 Hydraulic Sprayer Pump - Cast Iron Centrifugal with 1-1/4" x 1" FPT Ports
SKU: ACFMC-HYD-204Catalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 1-1/4"Outlet Size: 1"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 60Max PSI: 100Motor Max RPM: 4600Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $994.01 / EA
i h
Picture of Ace FMC150HYD206 Cast Iron Centrifugal Sprayer Pump with Hydraulic Motor
SKU: ACFMC150HYD206Catalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 1-1/2"Outlet Size: 1-1/4"Inlet Connection: FlangeOutlet Connection: FlangeMax GPM: 120Max PSI: 120Motor Max RPM: 5100Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $1,019.01 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron, 220 FP Flange x 1-1/2" FPT Inlet, 200 SP Flange x 1-1/4" FPT Outlet with #206, 7 GPM Hydraulic Motor, 120 GPM MAX, 120 PSI @ 5100 RPM MAX
SKU: ACFMC150FHYD206Catalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 2"Outlet Size: 1-1/2"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 180Max PSI: 80Motor Max RPM: 3950Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $1,061.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron, 1-1/4" x 1" FPT Ports with #210, 10 GPM Hydraulic Motor, 60 GPM MAX, 100 PSI @ 4600 RPM MAX
SKU: ACFMC-HYD-210Catalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 1-1/4"Outlet Size: 1"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 60Max PSI: 100Motor Max RPM: 4600Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $994.00 / EA
i h
Picture of Ace FMC200HYD304 Cast Iron Hydraulic Centrifugal Sprayer Pump
SKU: ACFMC200HYD304Catalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Viton®Inlet Size: 1-1/4"Outlet Size: 1"Inlet Connection:  Outlet Connection:  Max GPM:  Max PSI:  Motor Max RPM:  Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style:  Price: $1,208.01 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron, 1-1/2" x 1-1/4" FPT Ports with #206, 7 GPM Hydraulic Motor, 120 GPM MAX, 120 PSI @ 5100 RPM MAX (Silicon Carbide Seal)
SKU: ACFMC150HYD206ACatalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon CarbideInlet Size: 1-1/2"Outlet Size: 1-1/4"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 120Max PSI: 120Motor Max RPM: 5100Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $1,088.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron, 3" SP Flange Inlet, 2" FP Flange Outlet with #304, 11 GPM Hydraulic Motor, 200 GPM MAX, 120 PSI @ 5100 RPM MAX (Silicon Carbide Seal)
SKU: ACFMC205FHYD304Catalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon CarbideInlet Size: 3"Outlet Size: 2"Inlet Connection: FlangeOutlet Connection: FlangeMax GPM: 200Max PSI: 120Motor Max RPM: 5100Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $1,367.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron, 1-1/4" x 1" FPT Ports with #203, 3 GPM Hydraulic Motor, 80 GPM MAX, 100 PSI @ 4600 RPM MAX
SKU: ACFMC-HYD-203Catalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 1-1/4"Outlet Size: 1"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 80Max PSI: 100Motor Max RPM: 4600Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $1,029.00 / EA
i h
Picture of Ace FMC-HYD-LM Centrifugal Pump, Cast Iron, 1-1/4" x 1" FPT ports, Less Motor
SKU: ACFMC-HYD-LMCatalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 1-1/2"Outlet Size: 1-1/4"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 120Max PSI: 120Motor Max RPM: 5100Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $772.20 / EA
i h
Picture of Ace 150HYD206 Centrifugal Pump Only, Cast Iron, 1-1/2" x 1-1/4"
SKU: ACFMC-150-HYD-LMCatalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 3"Outlet Size: 2"Inlet Connection: FlangeOutlet Connection: FlangeMax GPM: 200Max PSI: 120Motor Max RPM: 5100Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $584.00 / EA
i h
Picture of Ace Pump Model FMC-200SS-HYD-304 - Stainless Steel Hydraulic Centrifugal Sprayer Pump
SKU: ACFMC200HYD304SCatalog: E0233 Pump Type: CentrifugalBody Material: Stainless SteelSeal Material: Viton®Inlet Size: 1-1/2"Outlet Size: 1-1/4"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 120Max PSI: 120Motor Max RPM: 5100Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $1,675.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron, 1-1/4" x 1" FPT Ports with #202, 2 GPM Hydraulic Motor, 70 GPM MAX, 100 PSI @ 4600 RPM MAX
SKU: ACFMC-HYD-202Catalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 1-1/4"Outlet Size: 1"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 70Max PSI: 100Motor Max RPM: 4600Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $1,037.00 / EA
i h
Picture of Ace FMC-HYD-310 Straight Centrifugal Pump, Cast Iron, 1-1/4" x 1" FPT Ports with 310 Hydraulic Motor
SKU: ACFMC-HYD-310Catalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 1-1/4"Outlet Size: 1"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 60Max PSI: 100Motor Max RPM: 3950Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $1,024.00 / EA
i h
Picture of ACE FMC-150FS-HYD-206 Hydraulic Centrifugal Pump - Chemical Resistant Stainless Steel Sprayer Pump Unit
SKU: ACFMC150FSHYDCatalog: E0233 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon Carbide/Viton®Inlet Size: 2"Outlet Size: 1-1/2"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 200Max PSI: 120Motor Max RPM: 5100Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: $1,840.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron, 3" SP Flange Inlet, 2" 220 FP Flange Outlet with #304, 11 GPM Hydraulic Motor, 200 GPM MAX, 120 PSI @ 5100 RPM MAX
SKU: ACFMC200FHYD304Catalog: Pump Type: CentrifugalBody Material: Cast IronSeal Material: Viton®Inlet Size: 1-1/4"Outlet Size: 1"Inlet Connection:  Outlet Connection:  Max GPM:  Max PSI:  Motor Max RPM:  Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style:  Price: CALL FOR PRICE
Picture of Straight Centrifugal Pump, Cast Iron, 2" x 1-1/2" FPT Ports with #210, 10 GPM Hydraulic Motor, 180 GPM MAX, 80 PSI @ 3950 RPM MAX
SKU: ACFMC200HYD210Catalog: Pump Type: CentrifugalBody Material: Stainless SteelSeal Material: Silicon Carbide/Viton®Inlet Size: 2"Outlet Size: 1-1/2"Inlet Connection: FPTOutlet Connection: FPTMax GPM: 200Max PSI: 120Motor Max RPM: 5100Pump Mfg: Ace PumpsDrive: Hydraulic MotorDrive Style: Close CoupledPrice: CALL FOR PRICE

Additional Information

220 FP Flange x 1-1/2" FPT Inlet, 200 SP Flange / 1-1/4" FPT Outlet with #206, 7 GPM Hydraulic Motor, 120 GPM MAX, 120 PSI @ 5100 RPM MAX
